Electronic Audio Experiments Surveyor Instrument Voicing Preamp Pedal

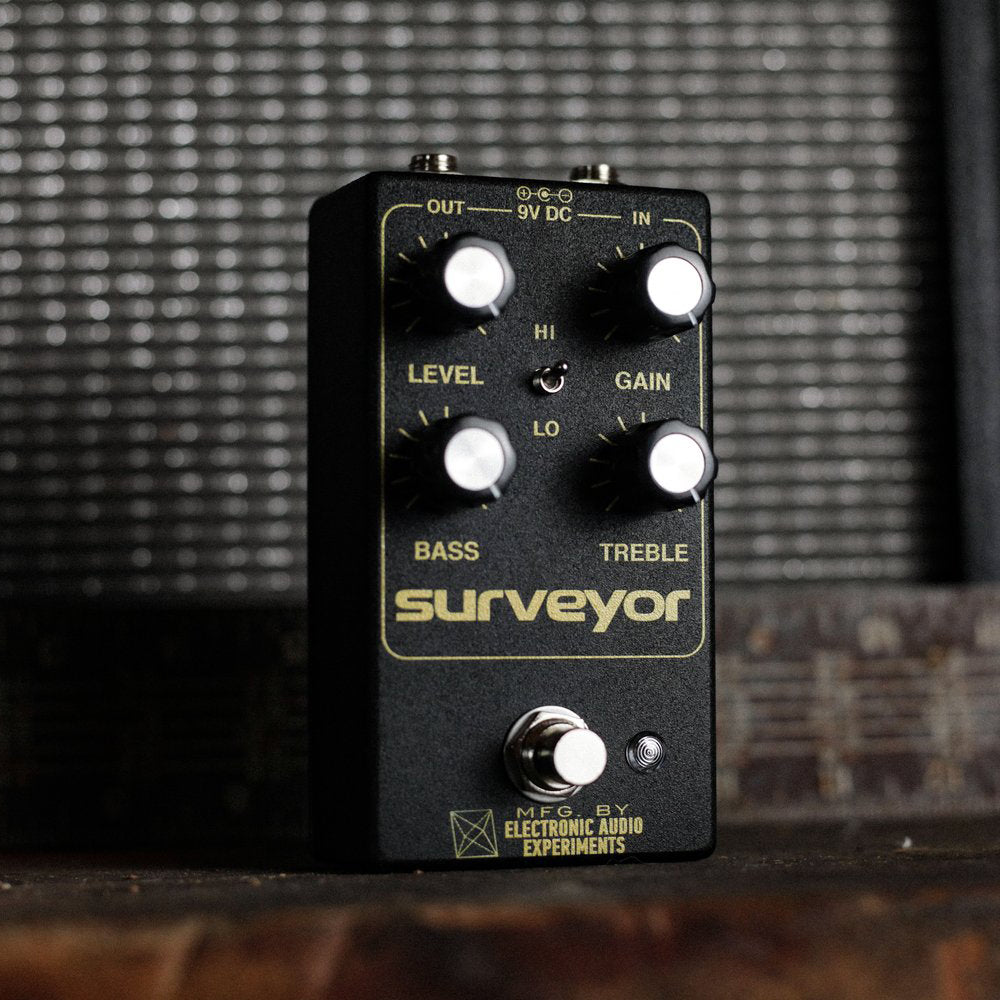

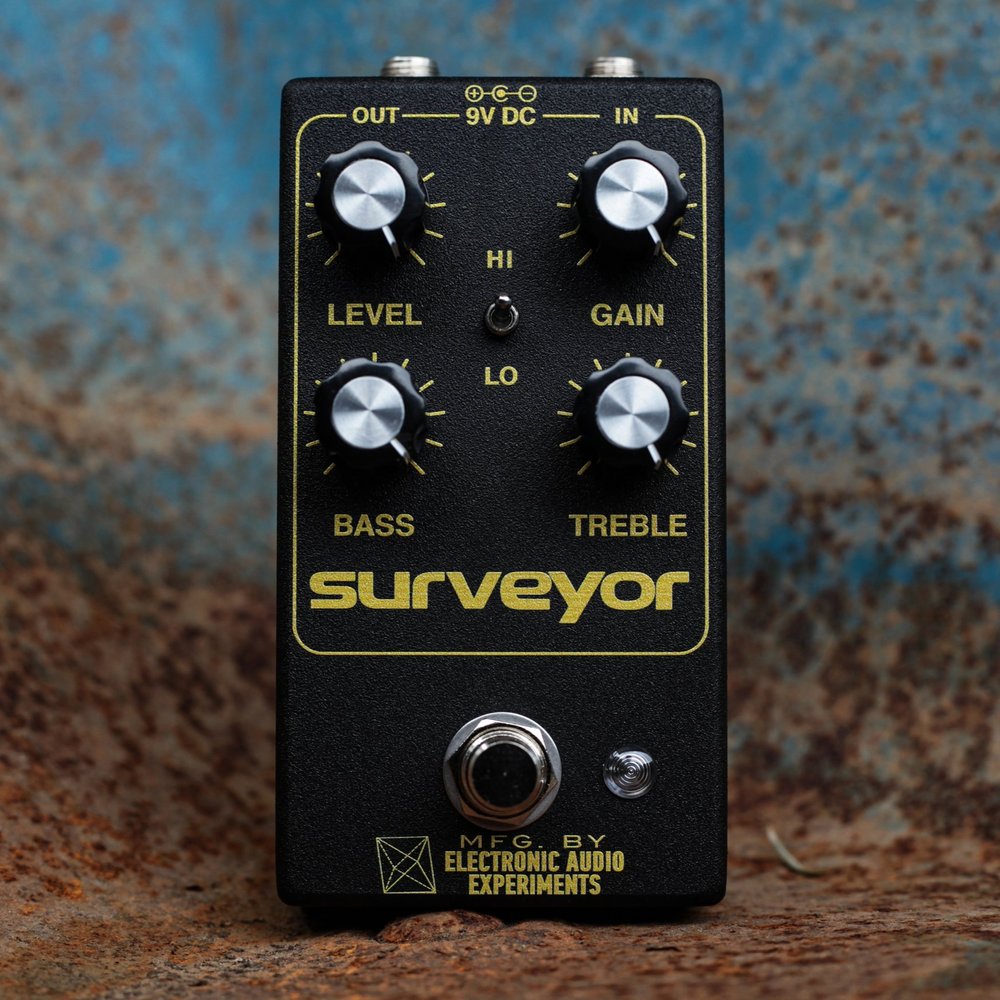

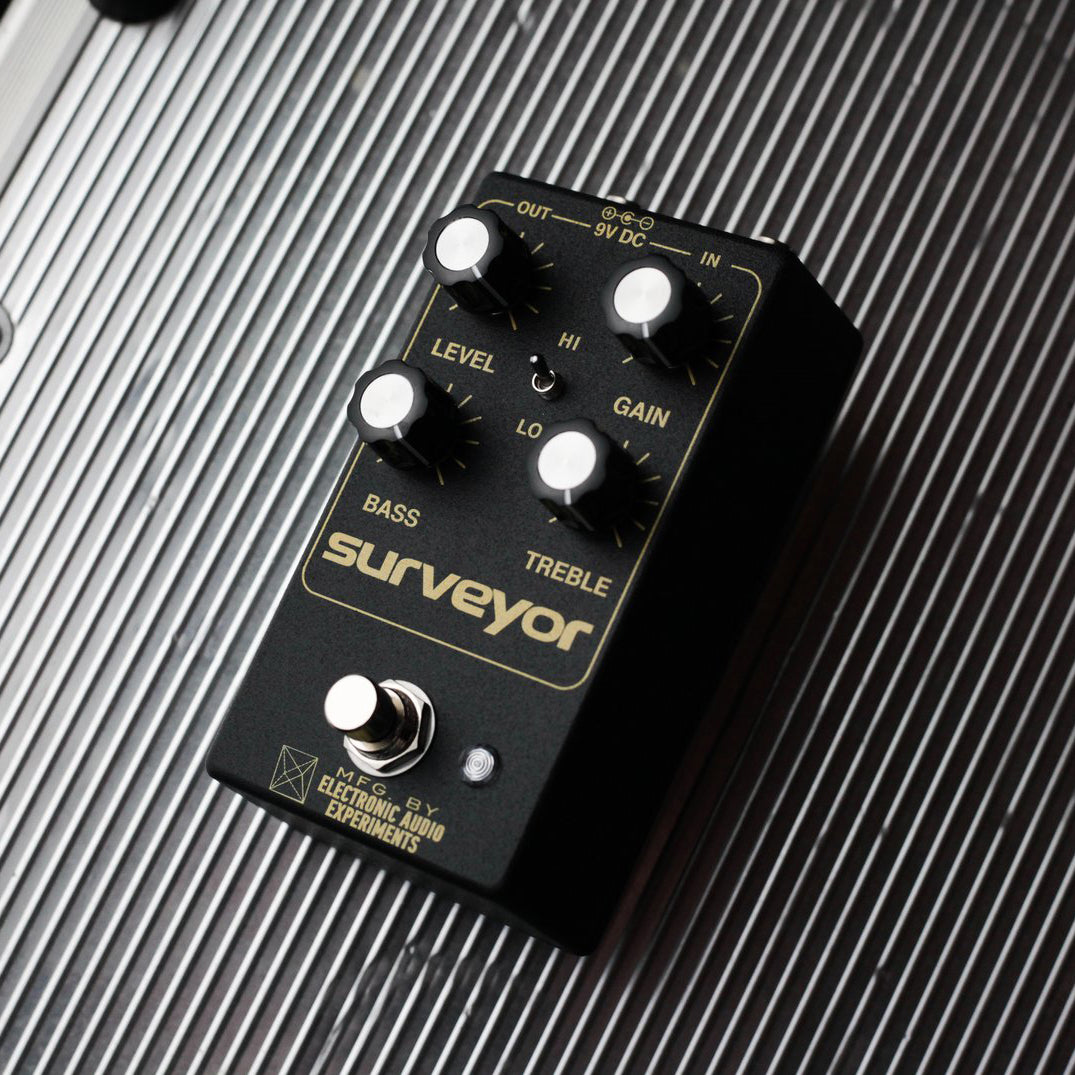

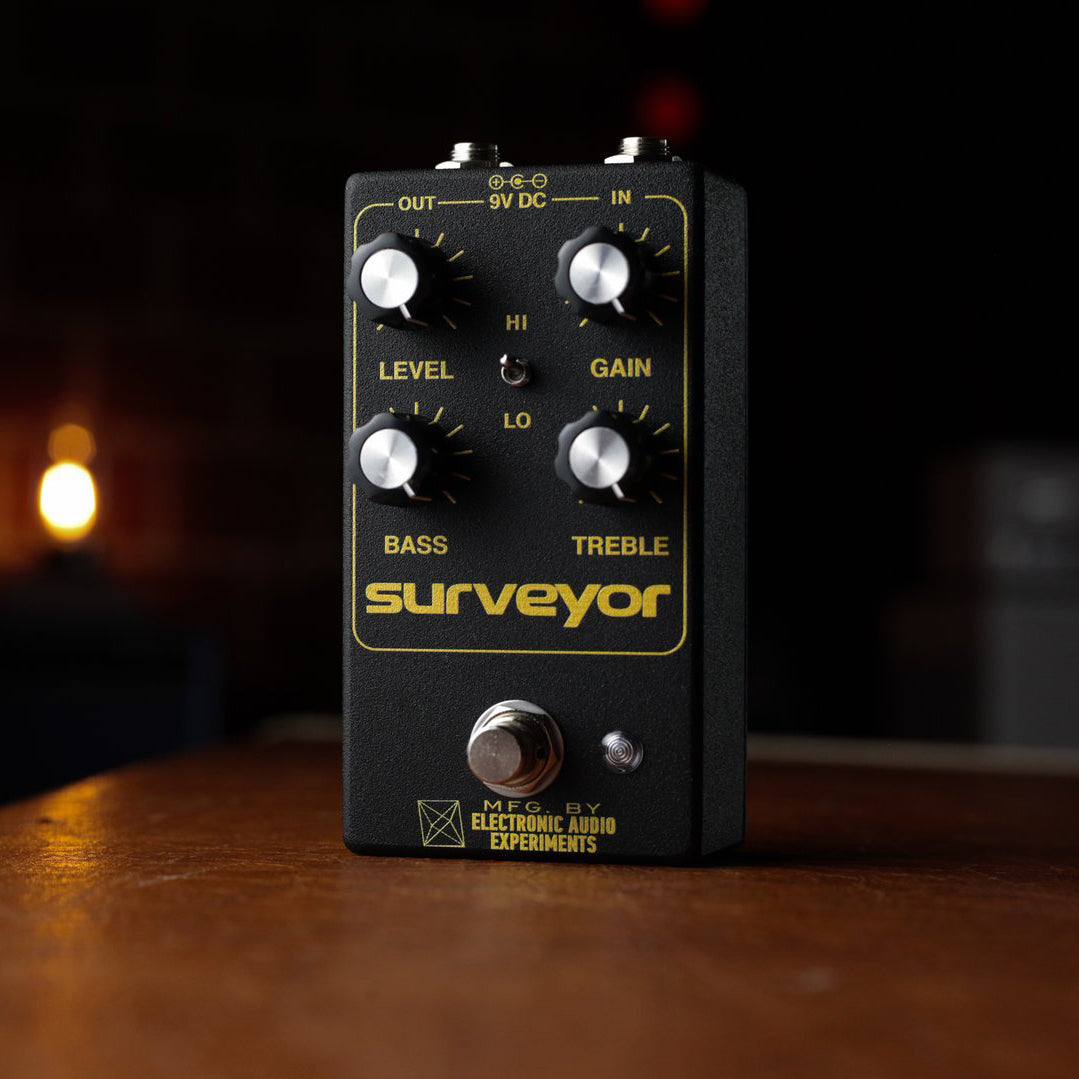

The Electronic Audio Experiments Surveyor is a compact re-interpretation of the Instrument Voicing Preamp (aka IVP), a cult classic and long discontinued rackmount preamplifier. The IVP is best known for its distinctively clangy tone and harsh attack at high treble settings—especially in conjunction with an aluminum neck guitar, single coil pickups, and full range speakers — but its unique solid-state voice transcends genre labels.

The Surveyor features a unique, transformer-loaded “Tube Voice” distortion generator that is highly responsive to the frequency content of the input signal. This is achieved by placing a two-band shelving EQ before distortion is applied—the complete opposite of most drive pedals. Using this method, gain may be selectively applied to a specific frequency band: boost the treble for that signature clang, or maximize the bass for fuzz overload. This variety of saturated textures isn’t just for guitar, either! The Surveyor is equally at home on bass, synthesizers, drum machines, even vocals.

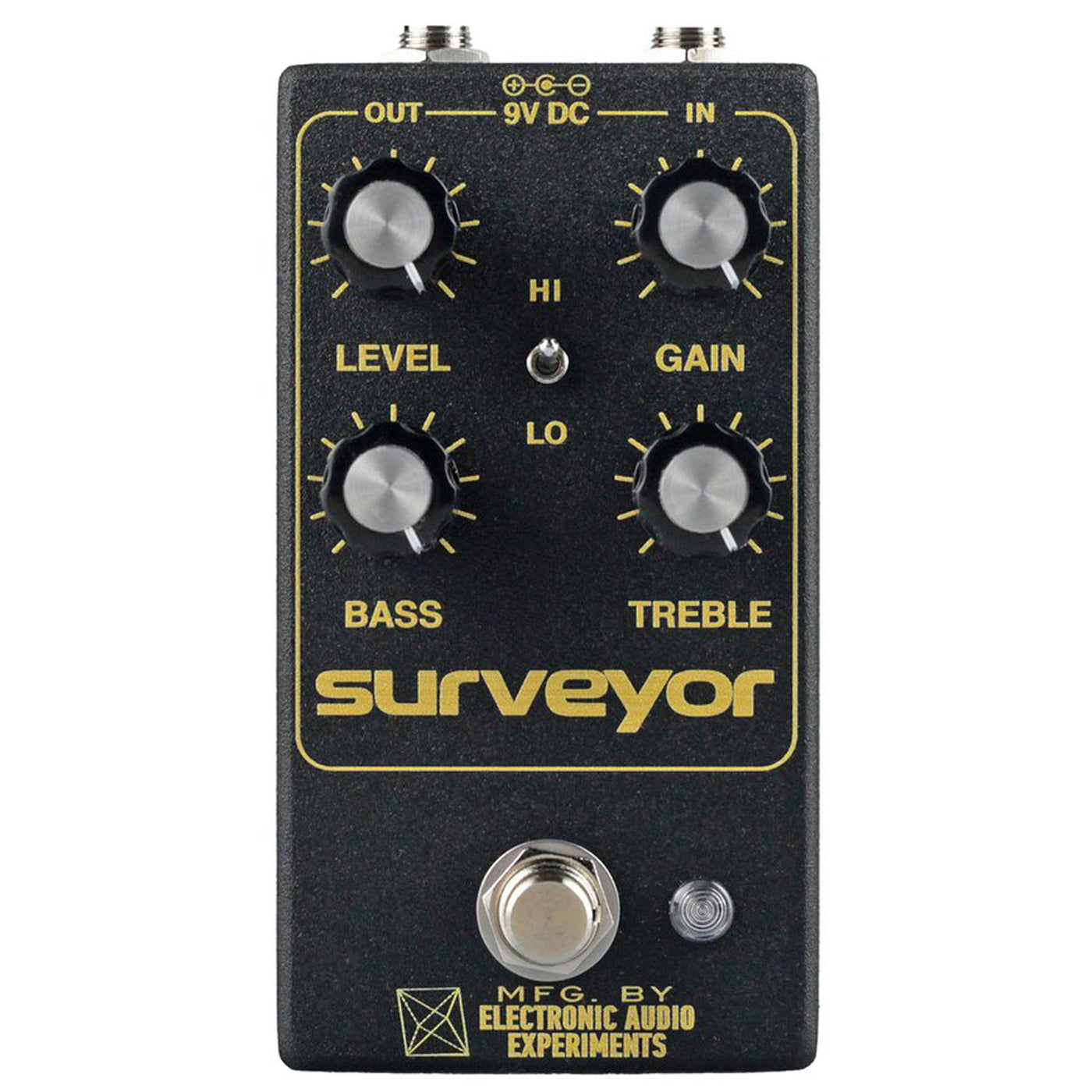

Controls

• Level: overall volume, with more than enough range for line level output or to overdrive the next thing in your signal path
• Gain: amount of overdrive/saturation equally applied to all frequencies; highly interactive with the Bass and Treble settings
• Bass: pre-clipping low shelf boost/cut, +/-12dB at 100Hz
• Treble: pre-clipping high shelf boost/cut, +/-12dB at 3KHz
• Hi/Lo (switch): sets the range of the gain control, +0dB in the Lo position and +14dB in the Hi position


Features:

• Size/Weight: 4.75" x 2.6" x 1.6", 14oz.
• Bypass: Relay switching with true bypass
• Input impedance at 1 Khz: 1M ohm
• Output impedance at 1 Khz: <1k ohm
• Power: 9V DC, 2.1 mm center negative barrel. The current draw is 70 mA. They recommend a regulated, isolated power supply rated for 100mA minimum. The PSU input is protected against reverse polarity and over-voltage up to 24V. Their pedals do not accept batteries.
