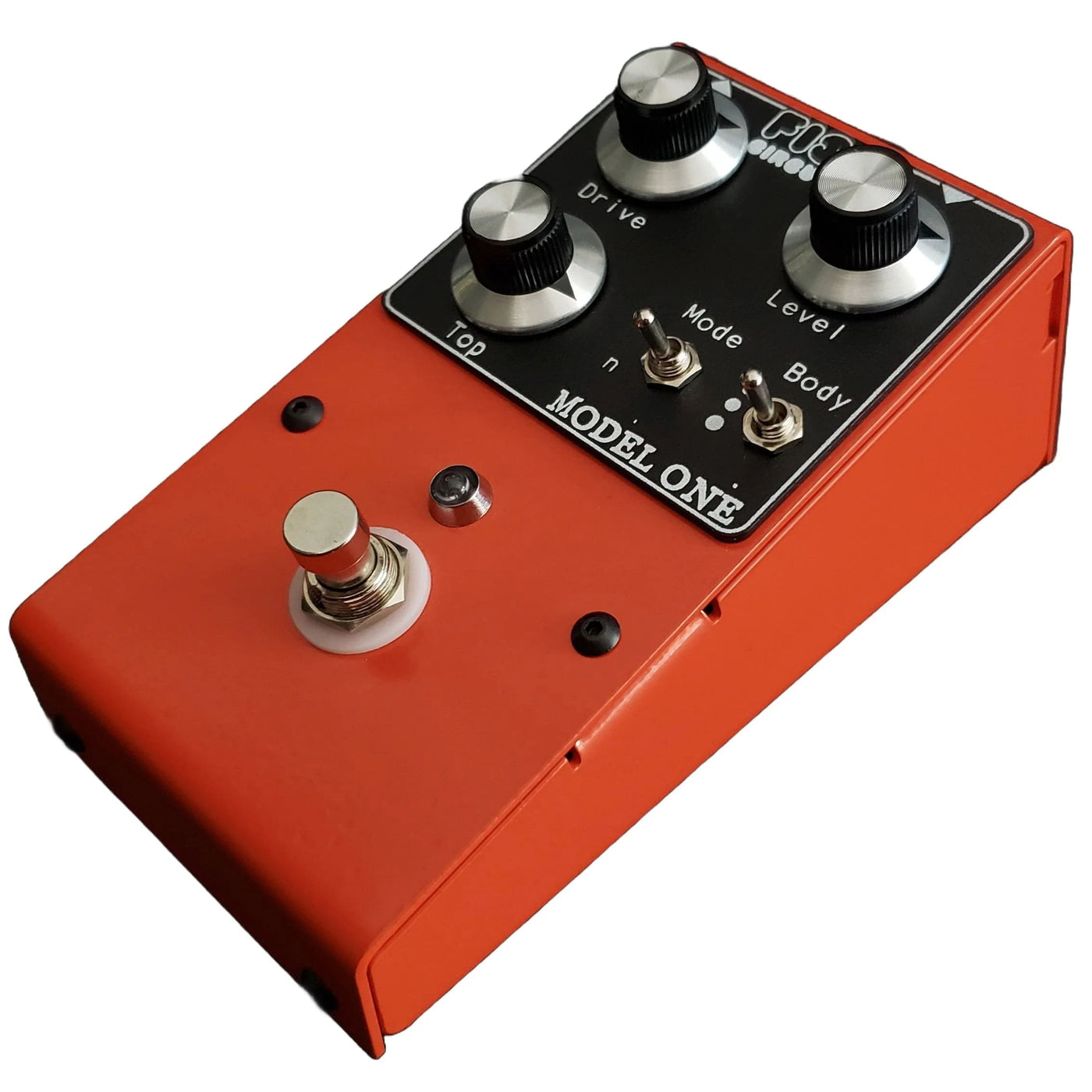

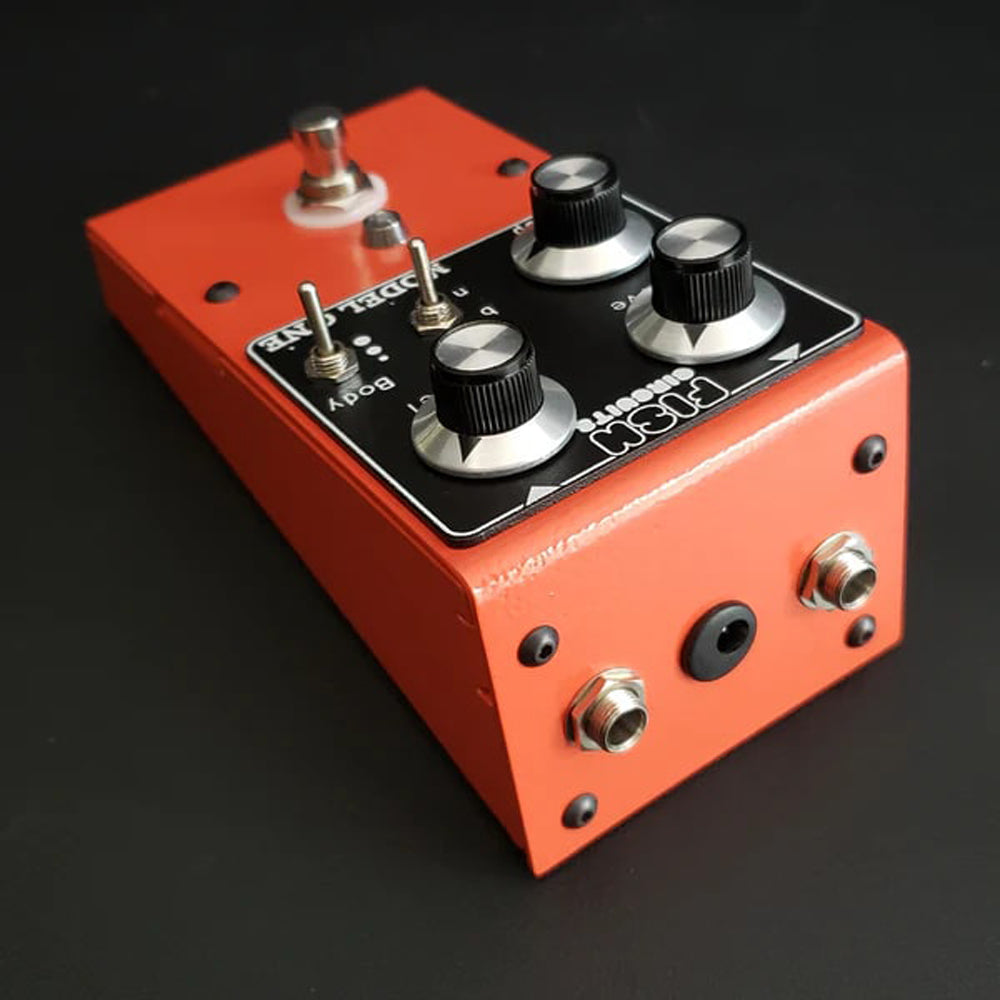

Fish Circuits Model One Overdrive Pedal

The Fish Circuits MODEL ONE is a classic natural overdrive with spicy tweaks. Incredibly versatile and more than usable on just about any settings. At lower gain settings, the MODEL ONE will give you dynamic amp-like breakup tones, that react to the subtleties of your playing. When cranked, you will find yourself in a saturated « fuzzstortion » territory, with loads of sustain and depth, reminiscent of citrus-colored amps.

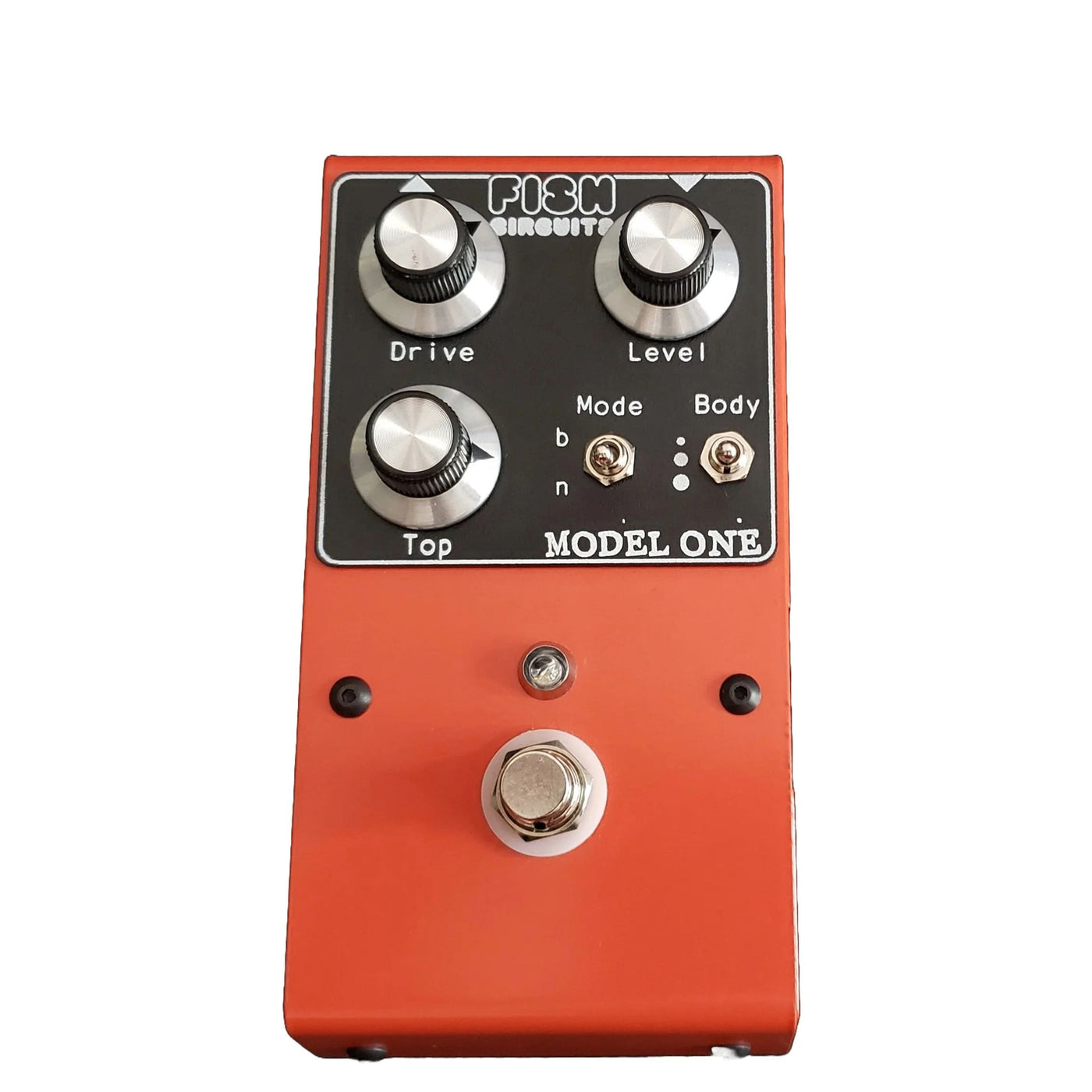

Controls

"Drive" is the gain control. It will sound like a scratchy pot when you turn it, this is normal.

"Mode" switch lets you select between the classic lower gain sound and "b" mode that showcases the saggier and more distorted side of the design, with almost fuzz-like tones when the "Drive" control is maxed out. "n" mode has a lot more volume output than "b" and "b" mode has a lot more gain than "n". Expect a volume drop on "b" mode.

"Body" switch controls the amount of lower frequencies at the input stage of the pedal. The lowest setting is the fattest, for the biggest and meanest sound… it might even be too much. The lower position being sometimes more low end than you actually need in a band mix, the middle position comes in handy, tidying things up. The bass cut being at the input of the circuit (before the gain stages), you will still get a rich full sound when distorted, but with less mud. The top position cuts most of the bass out, because that might be what you need in a busier mix, or for layering guitar tracks.


Features:

• Dimensions: 3” x 6” x 2.75”
• Weight: 1.5lbs
• Power: 9v DC, negative tip, 2.1mm barrel power supply
• Current draw: Less than 5mA
