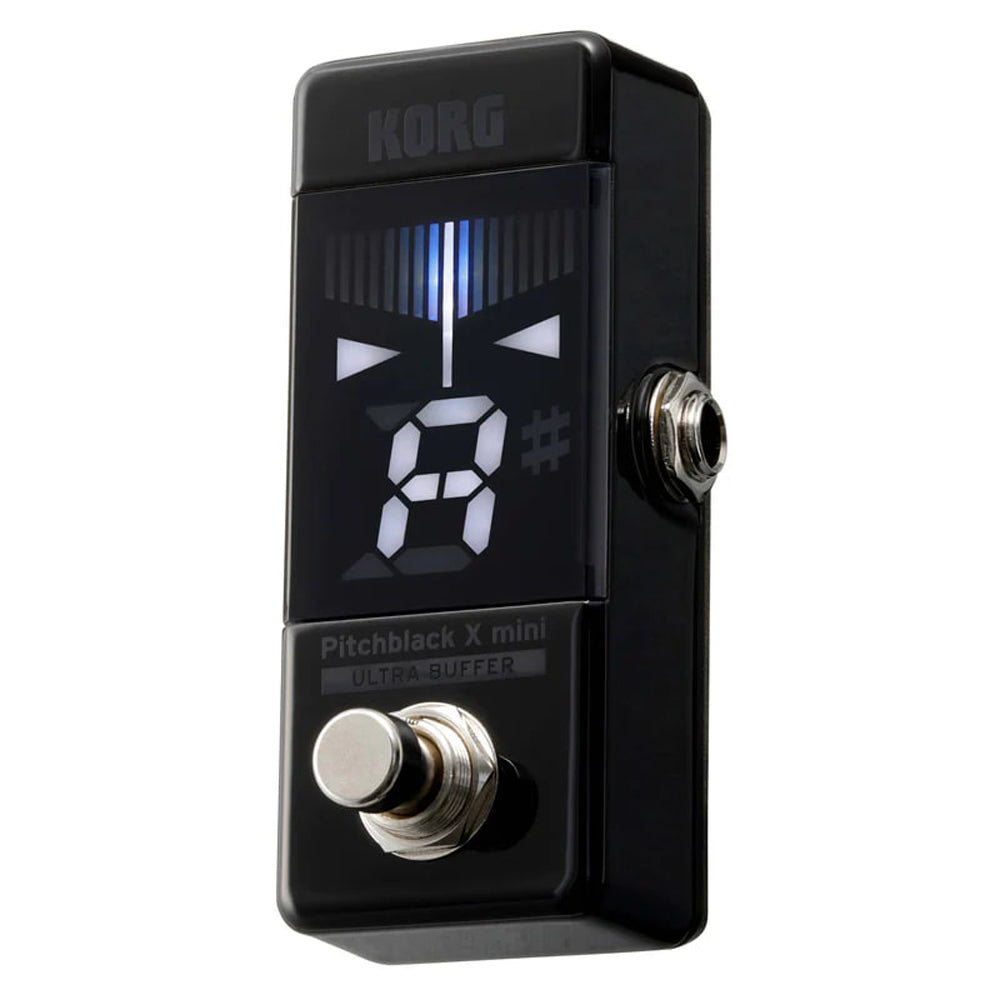

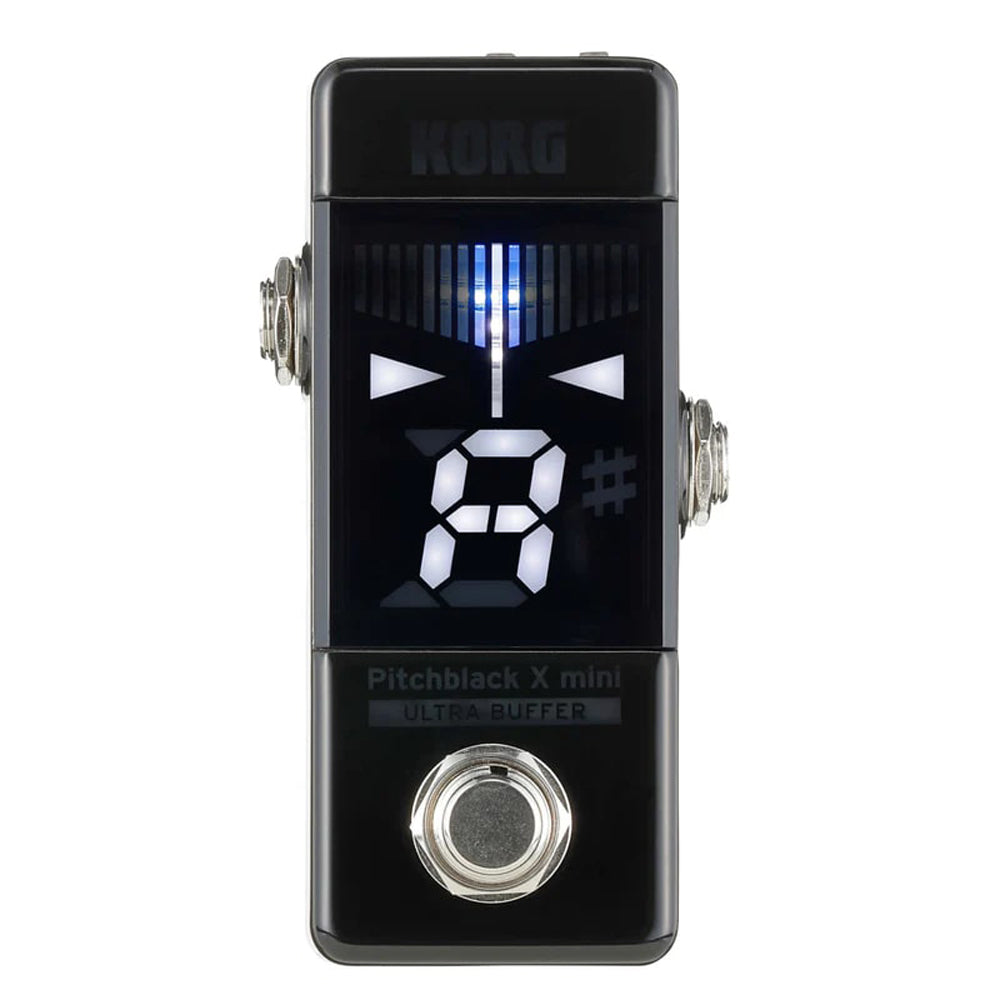

Korg PBXMINI Pitchblack X Mini Tuner Pedal w/ Ultra Buffer

New

Korg PBXMINI Pitchblack X Mini Tuner Pedal w/ Ultra Buffer

The Pitchblack X Mini is a compact pedal tuner featuring the new ULTRA BUFFER, which maintains guitar signal strength to keep you sounding best. It offers both ultra-high tuning accuracy and a high-visibility display to make tuning easy, all in a mini enclosure that can easily fit on any pedalboard or in any gig bag.


Ultra-high tuning accuracy down to +/-0.1 cents

The Pitchblack X mini offers highly precise and accurate tuning within a precision of ±0.1 cents when in Strobe mode, making it ideal for situations where the tuning must be absolutely right whether performing or recording.


The Pitchblack X mini features a built-in ULTRA BUFFER. Why is this important?

The majority of electric guitars use passive pickups with a high impedance output. When you are using a cable there is a loss of tone, usually high frequencies, after about 6 m (around 18 feet) and this problem gets worse the longer your cable. A buffer boosts the signal over long cables to avoid loss of tone, keeping it clean and clear - even when your pedal is off.

The ULTRA BUFFER enhances the sound quality in bypass mode, so that you can still maintain audio quality even when using a long cable to connect to the tuner, or when inserting the tuner into a complex effects board.


Compact housing that’s packed with powerful functionality

The Pitchblack X mini is the smallest tuner in the Pitchblack X series, and offers stress-free insertion into your gear-packed effects board. Weighing just 124 grams, this tuner features a powdered finish with a strong and durable housing.


Four meter display modes

Select from four types of meter display to match your requirements. Aside from the typical “Regular” mode, you can use “Strobe” and “Half Strobe” mode to indicate changes in pitch by the direction and speed that the meter is flowing in to distinguish even the finest differences in pitch; and you can use “Mirror” mode to see two LEDs on the left and right crossing together towards the center as you tune your instrument.


Pitchblack X Mini Pedal Tuner

The Pitchblack X Mini pedal tuner is designed with musicians' needs in mind. Its larger and brighter display are designed with double the meter LEDs for improved visibility and more accurate tuning, while the new Ultra Buffer maintains guitar signal strength over long cable runs or as part of a large pedalboard.


Features:

• Mini-sized pedal tuner
• Large, high-visibility display with two brightness modes
• Equipped with the new Ultra Buffer for retaining signal strength
• Ultra-high tuning accuracy down to +/-0.1 cents
• Triangle LEDs flash when pitch is accurate for faster tuning
• Four tuning display modes – regular, strobe, half-strobe, and mirror
• Runs on standard 9V power supply
• Scale: 12 note equal temperament
• Detection Range: E0 (20.60Hz)-C8(4,186Hz)
• Calibration Range: A4=436-445Hz(1Hz steps)
• Detection Accuracy: +/- 0.1 cent (display mode: Strobe)
• Input Impedance: 1 M-ohm (tuner on)
• Display Modes: Regular, Strobe, Half-strobe, Mirror

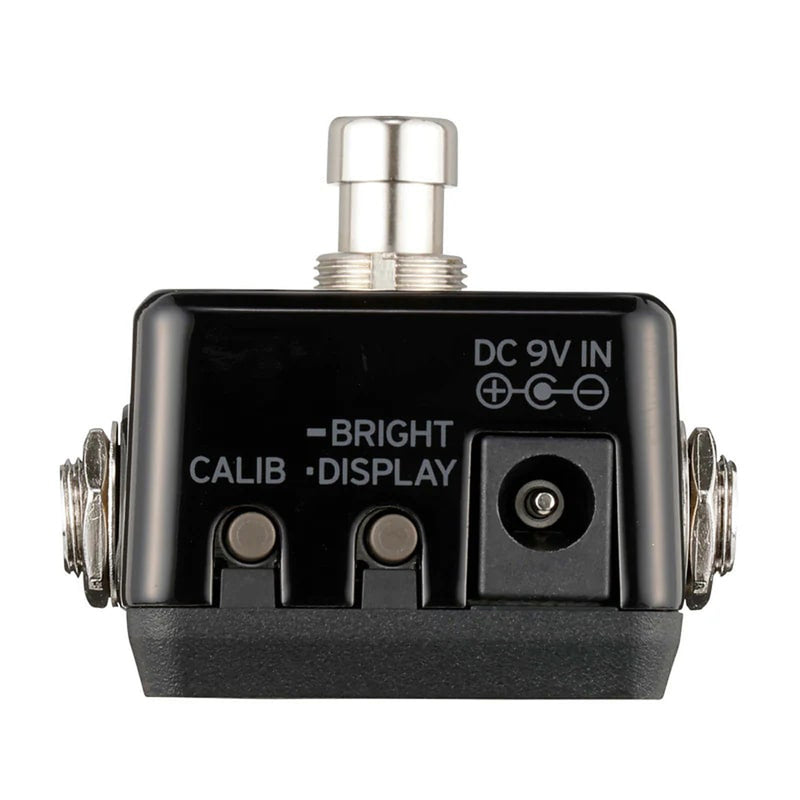

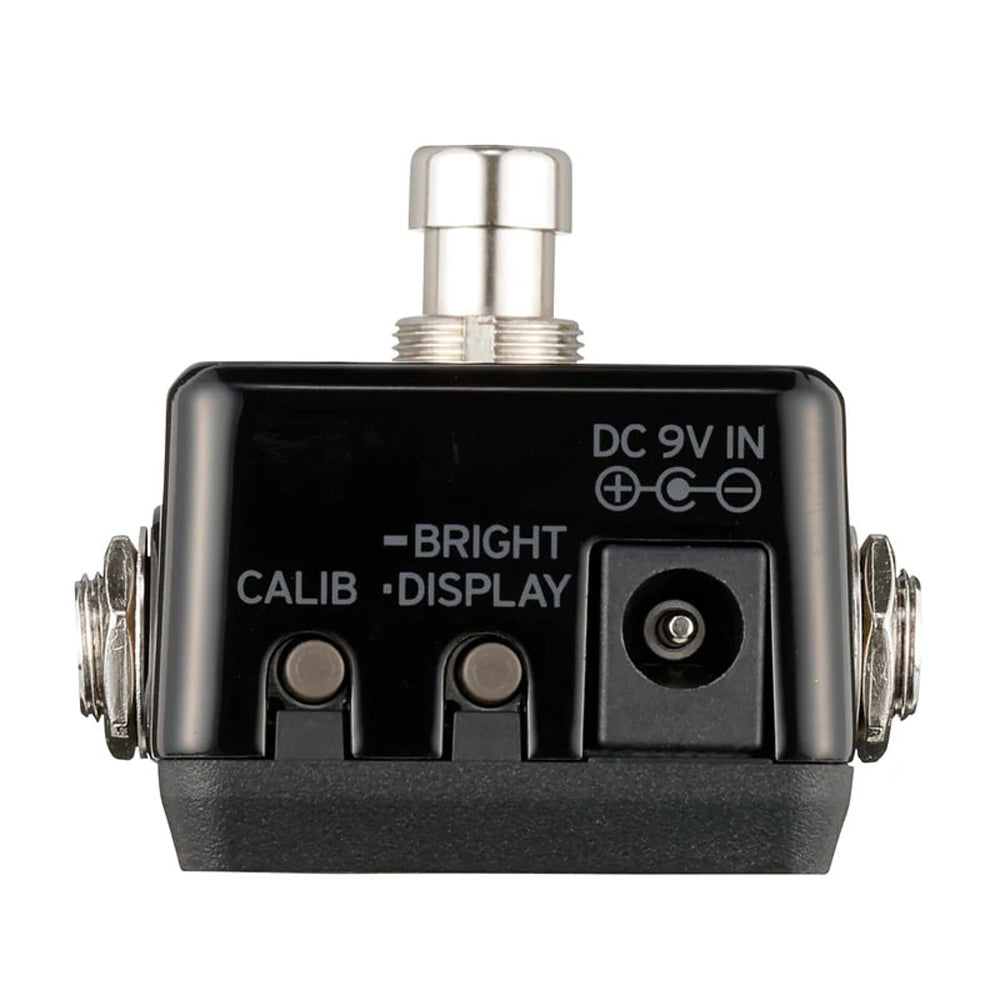

• Connectors: INPUT (mono 1/4” jack), BYPASS (mono 1/4” jack), DC 9V IN
• Power Supply: AC adaptor (9V)
• Power Consumption: Maximum 30 mA
• Included Items: Notices, Rubber feet
• Accessories: AC adaptor (9V)
• (W x D x H) 45 x 93 x 43 mm/1.77" x 3.66" x 1.69 (including protrusions)
