NUX B-8 Professional 2.4GHz Wireless Guitar System

New

The B-8 Guitar Wireless System is a professional-grade solution in NUX’s Pro Series. Built on their third-generation platform, it combines anti-interference tech, intelligent frequency hopping, 1MHz narrowband transmission, Audio Zip/Unzip, six stability levels, and a true-diversity dual-antenna design for rock-solid, reliable signal. The latest firmware further improves wireless performance with better transmission efficiency and stronger interference resistance.

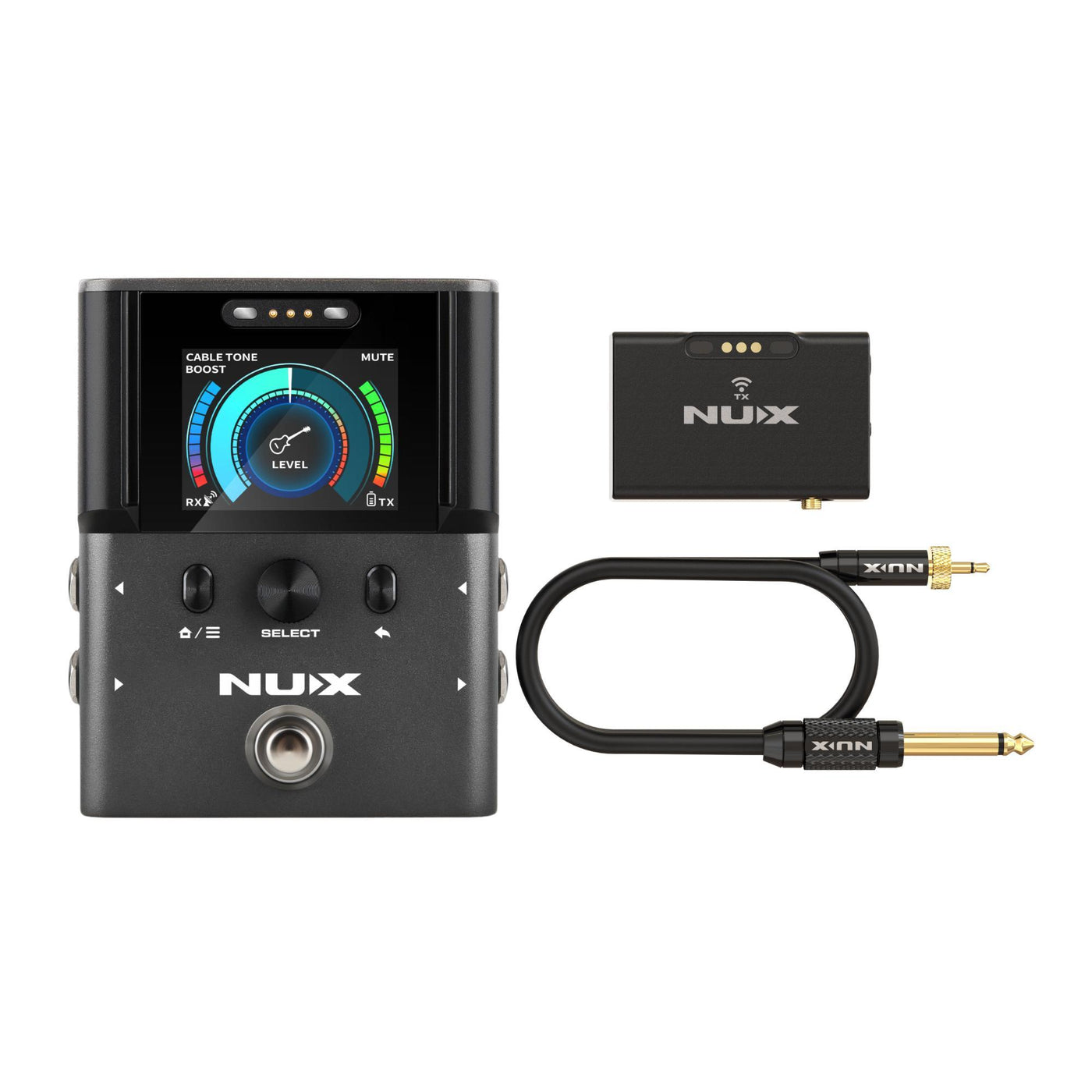

Designed for guitars, basses, and any instrument with a 1/4″ output, the system pairs a beltpack transmitter with a multifunction pedal receiver. It operates at 2.4 GHz, supports auto-pairing, delivers 24-bit/48 kHz audio, achieves latency down to 2.5 ms, and reaches up to 165 ft (50 m) line-of-sight. The transmitter’s built-in lithium battery provides up to 6.5 hours of runtime! Enough for rehearsals, sessions, and gigs.

6-Level Stability And Audio Zip/Unzip

The B-8 offers 6 levels of stability (2.5ms–8.7ms). Higher stability levels increase the number of signal transmissions, with up to 12 transmissions every 8.7ms. (Since interference is time-varying, more frequent transmissions can help avoid interference issues.)

It uses Audio Zip/Unzip technology with 24-bit/48kHz quality to ensure clear and stable sound, working in combination with 6-level stability settings. The 1MHz Zip technology enhances anti-interference performance — “like a motorcycle (1MHz) navigating around traffic along a crowded highway (2.4GHz~2.483GHz) more smoothly than a truck (4MHz).” The Unzip technology preserves high-resolution sound quality without any compromise.

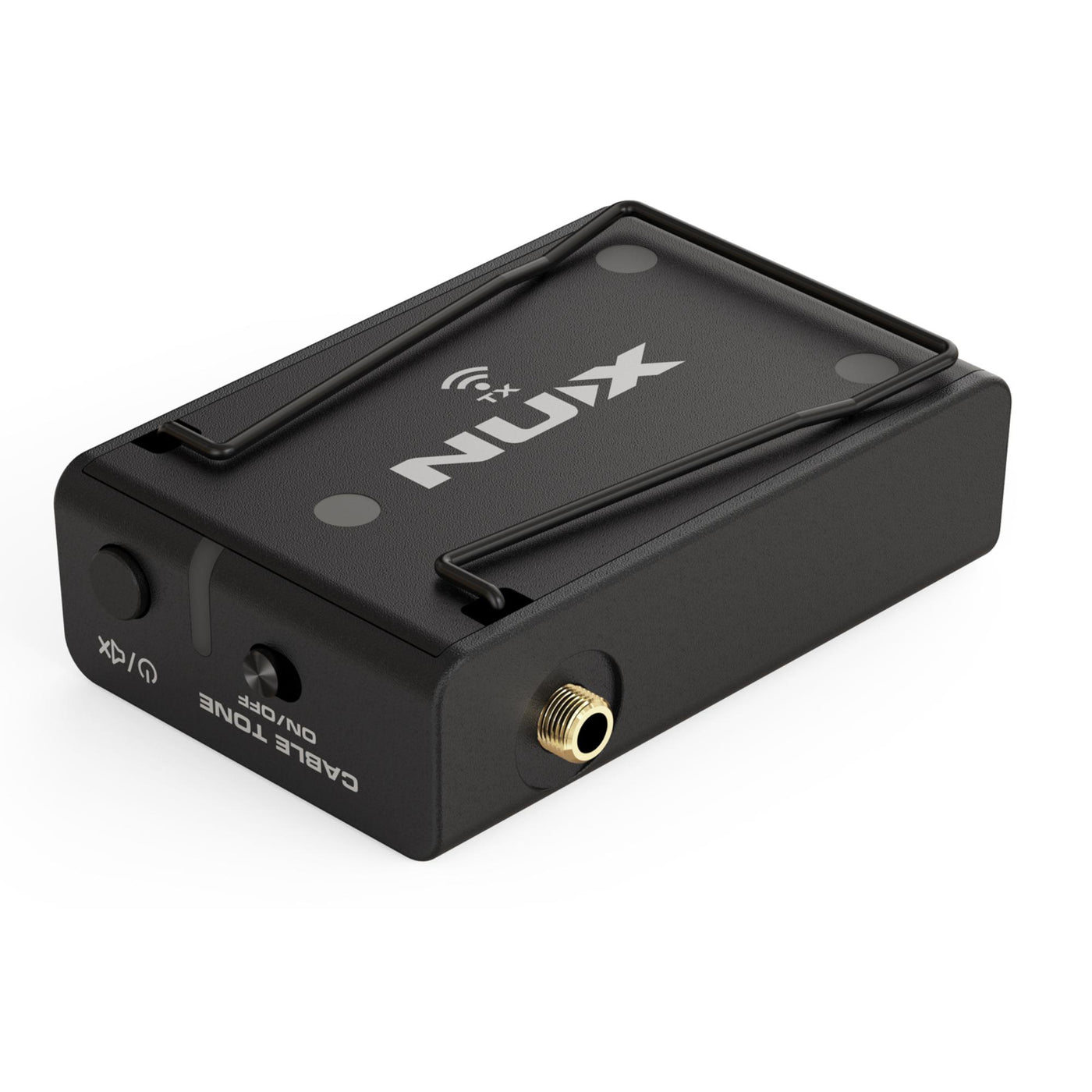

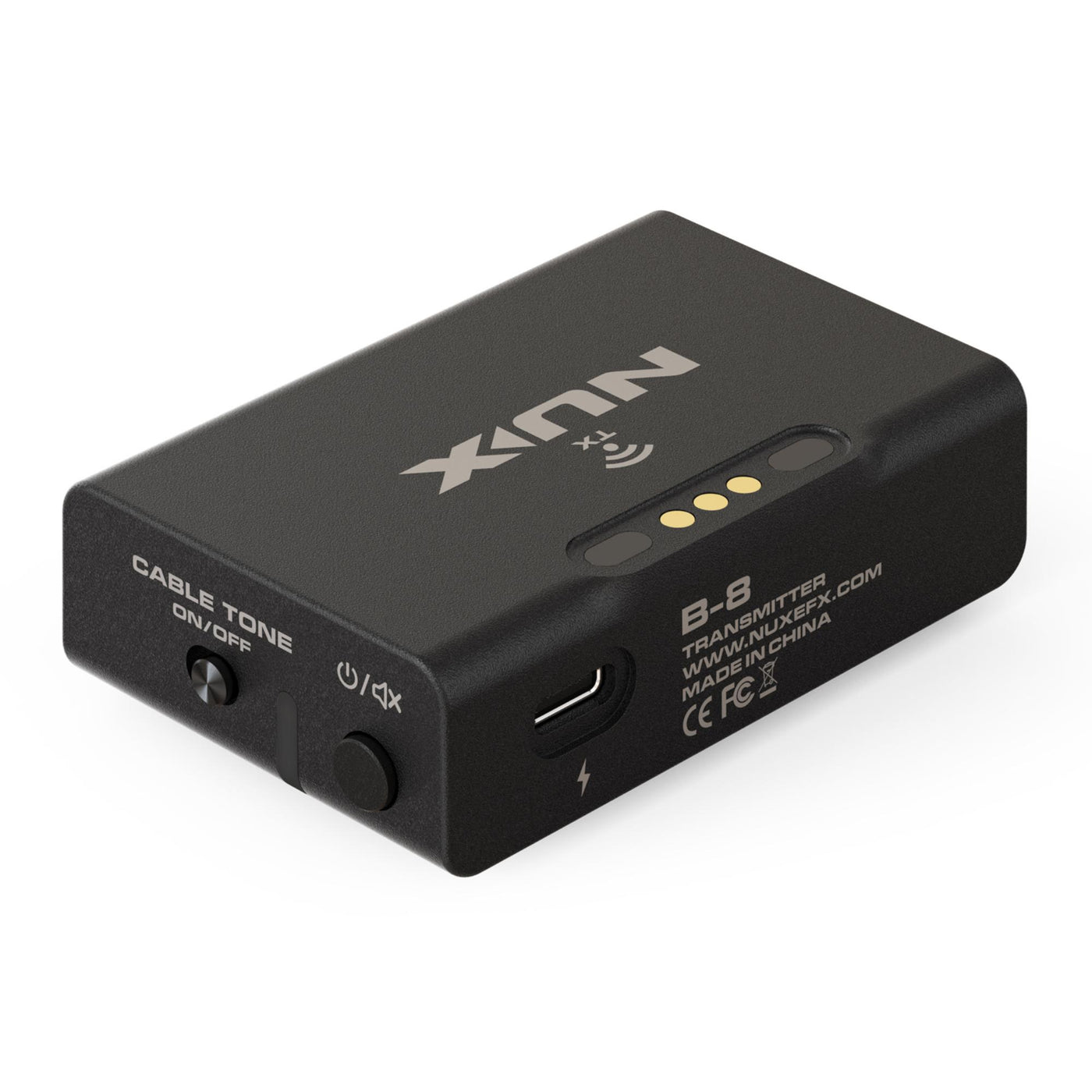

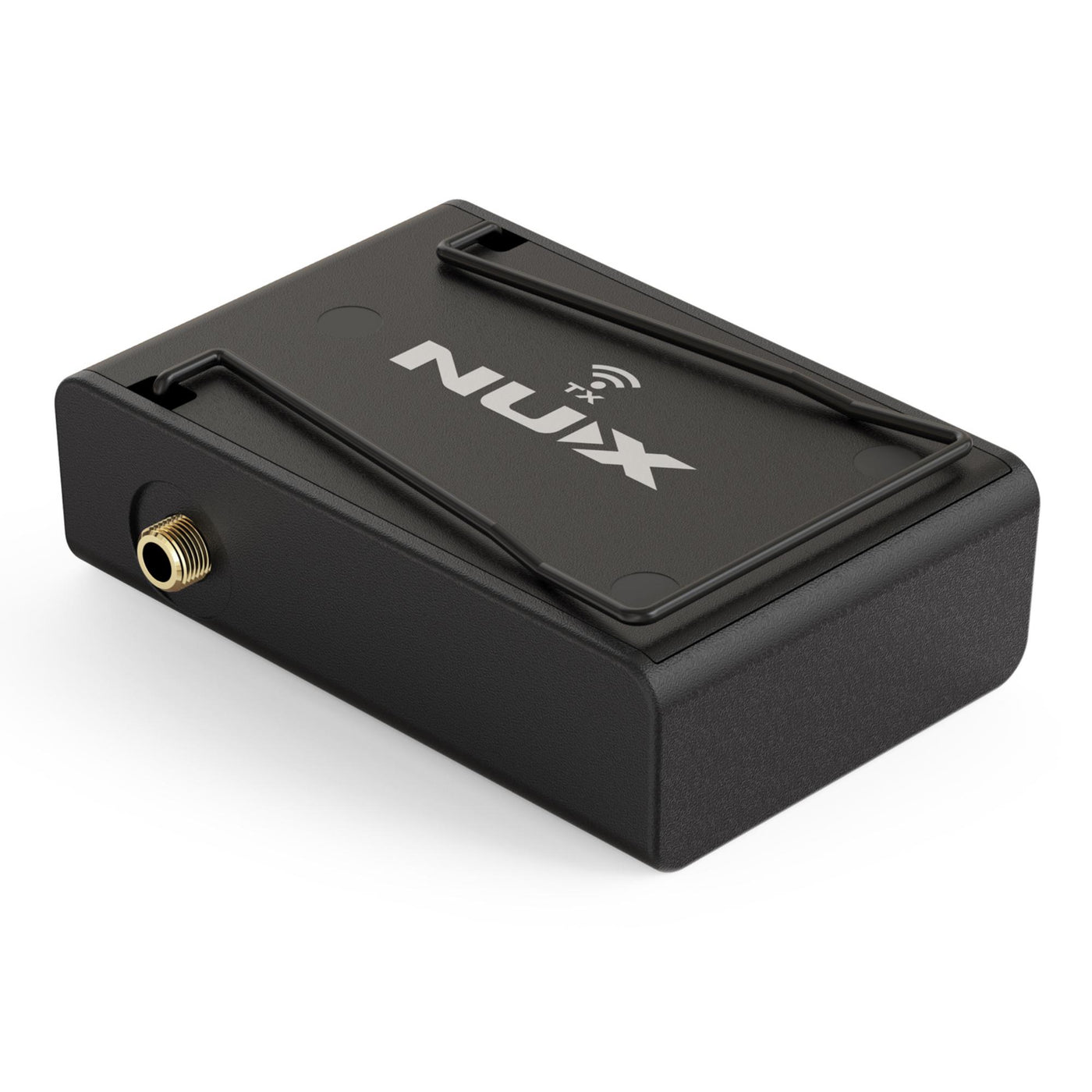

Beltpack Transmitter

The compact beltpack clips easily to a strap or pocket. Its jack design prevents rotation and loosening, keeping the plug secure even during energetic movement.

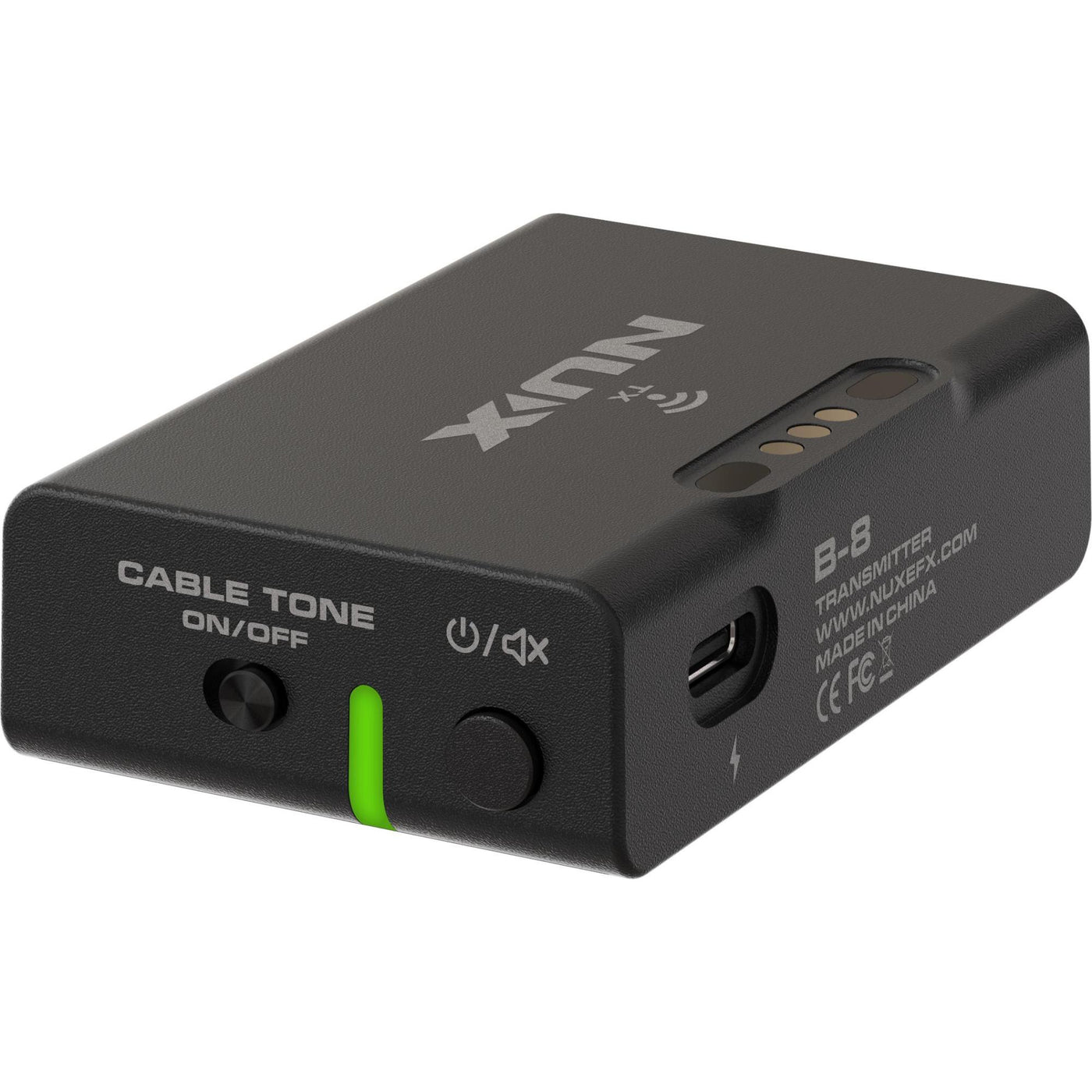

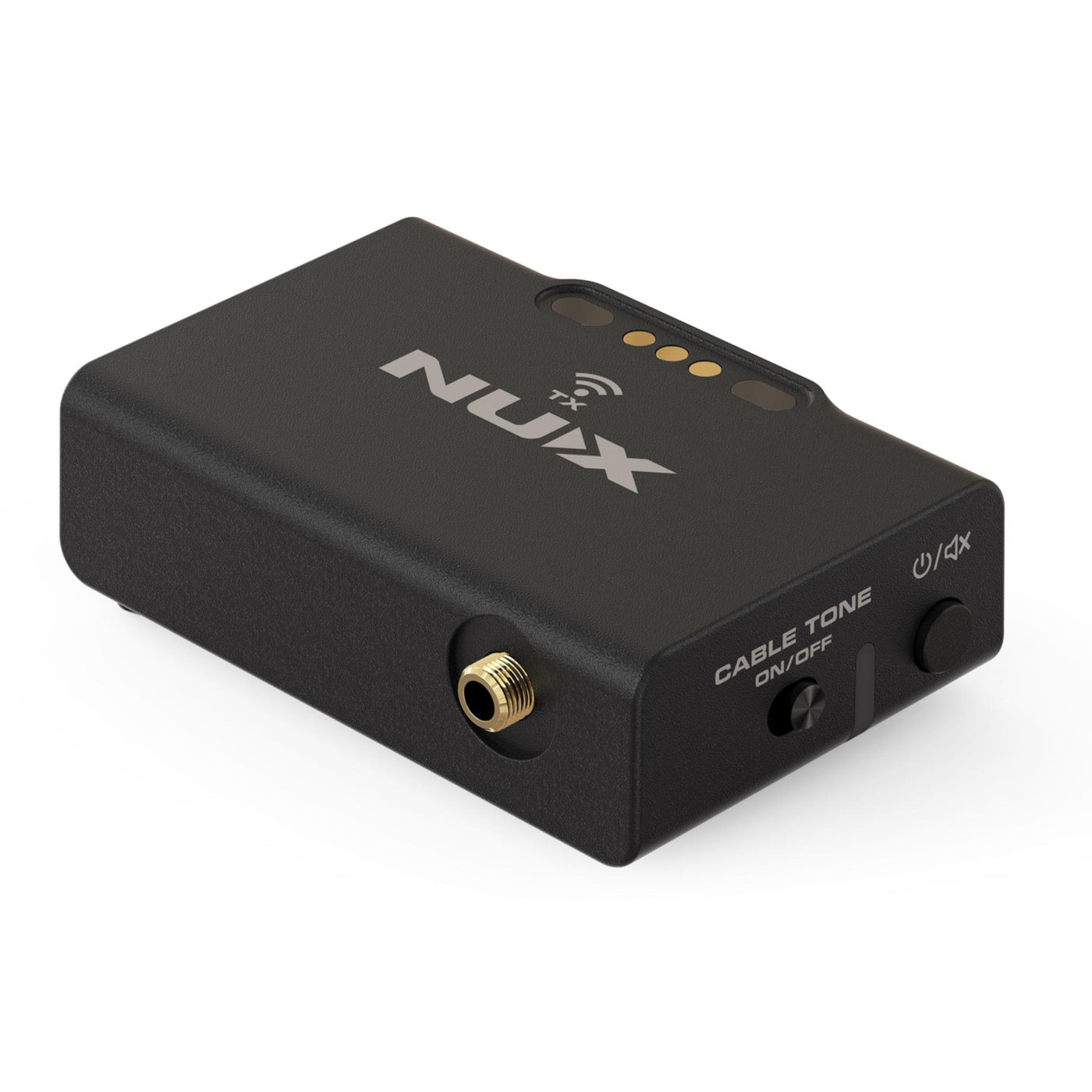

Cable Tone

The TX features a cable tone simulation which is normally used for some guitar players to get a warmer sound. If you want it, you can pull the switch and turn it on.

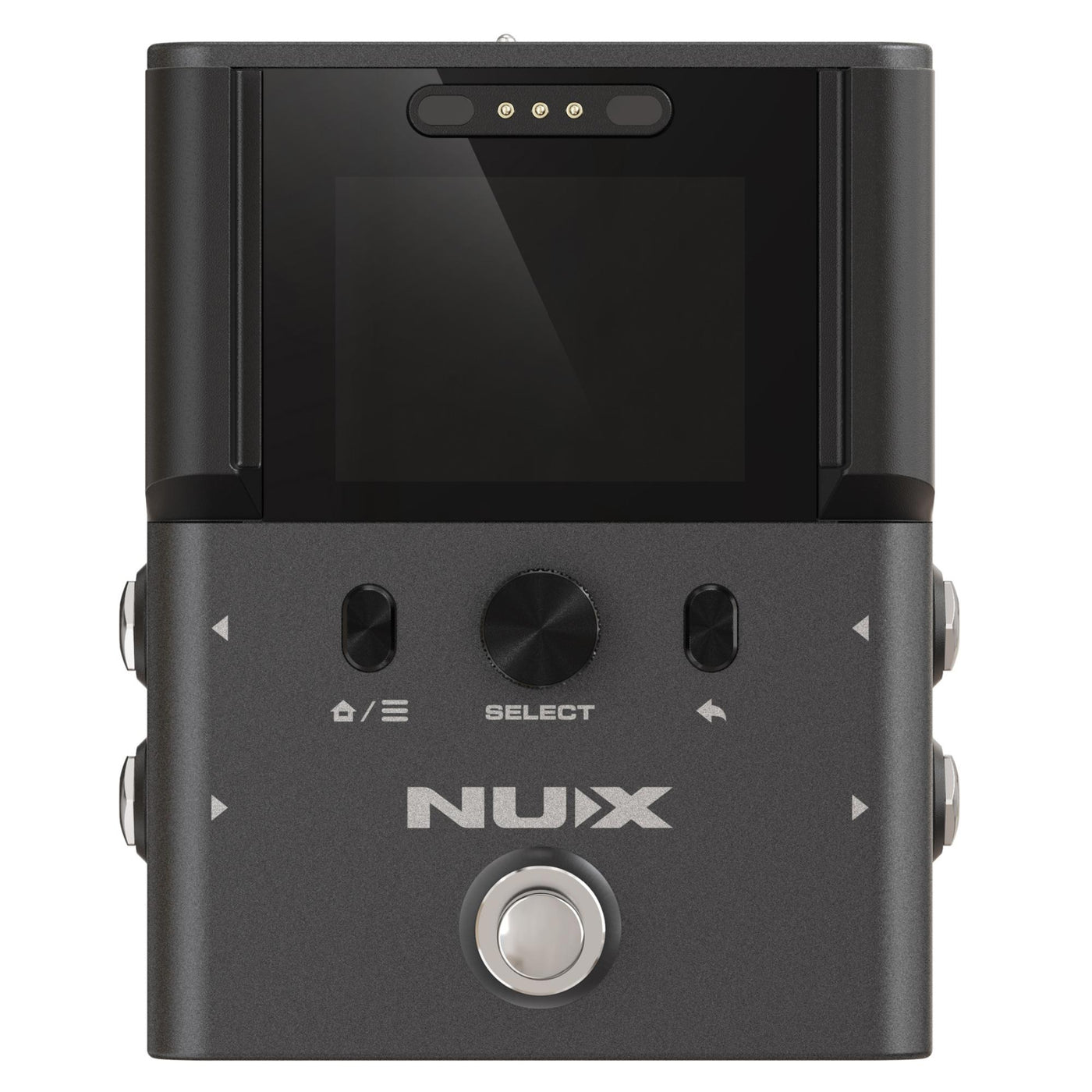

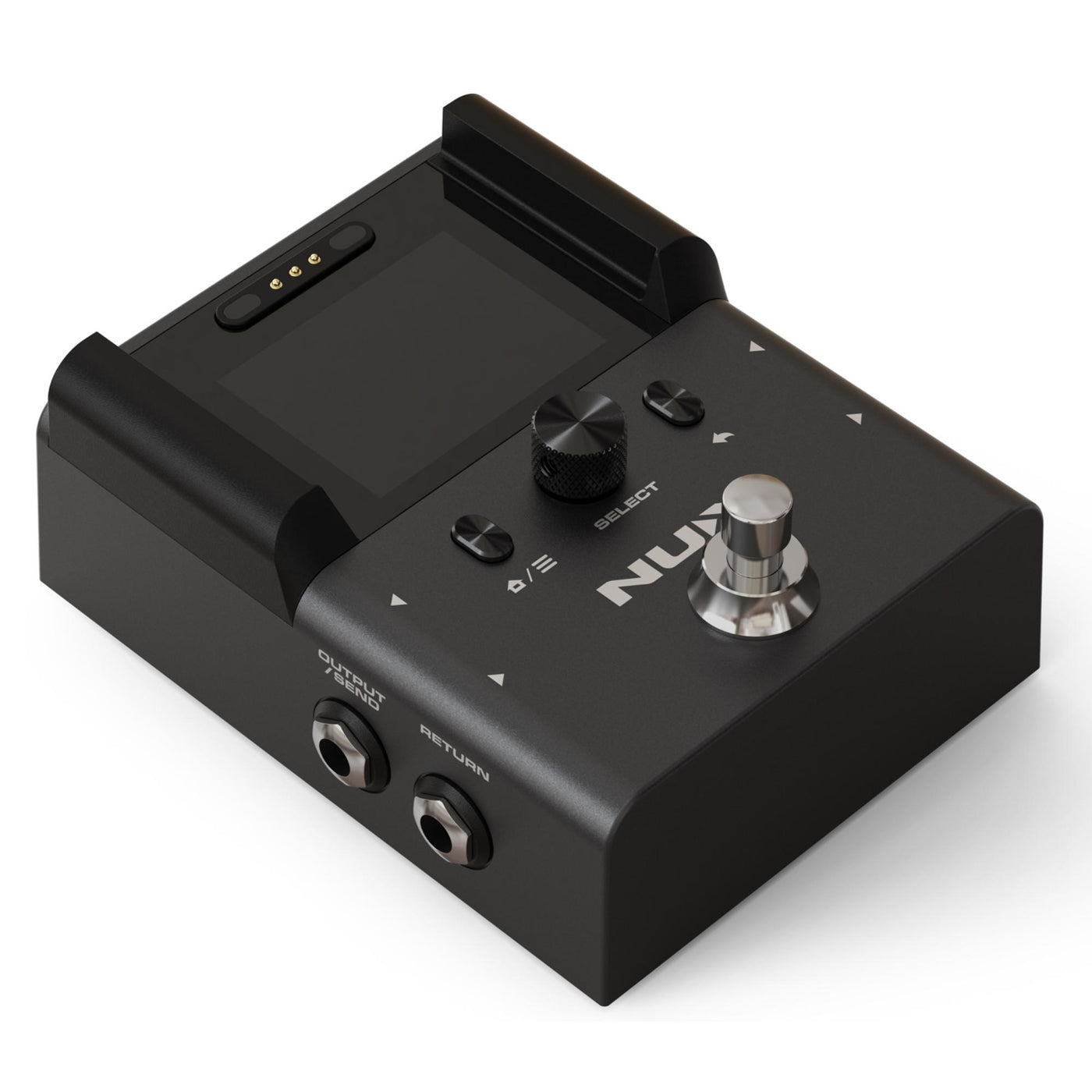

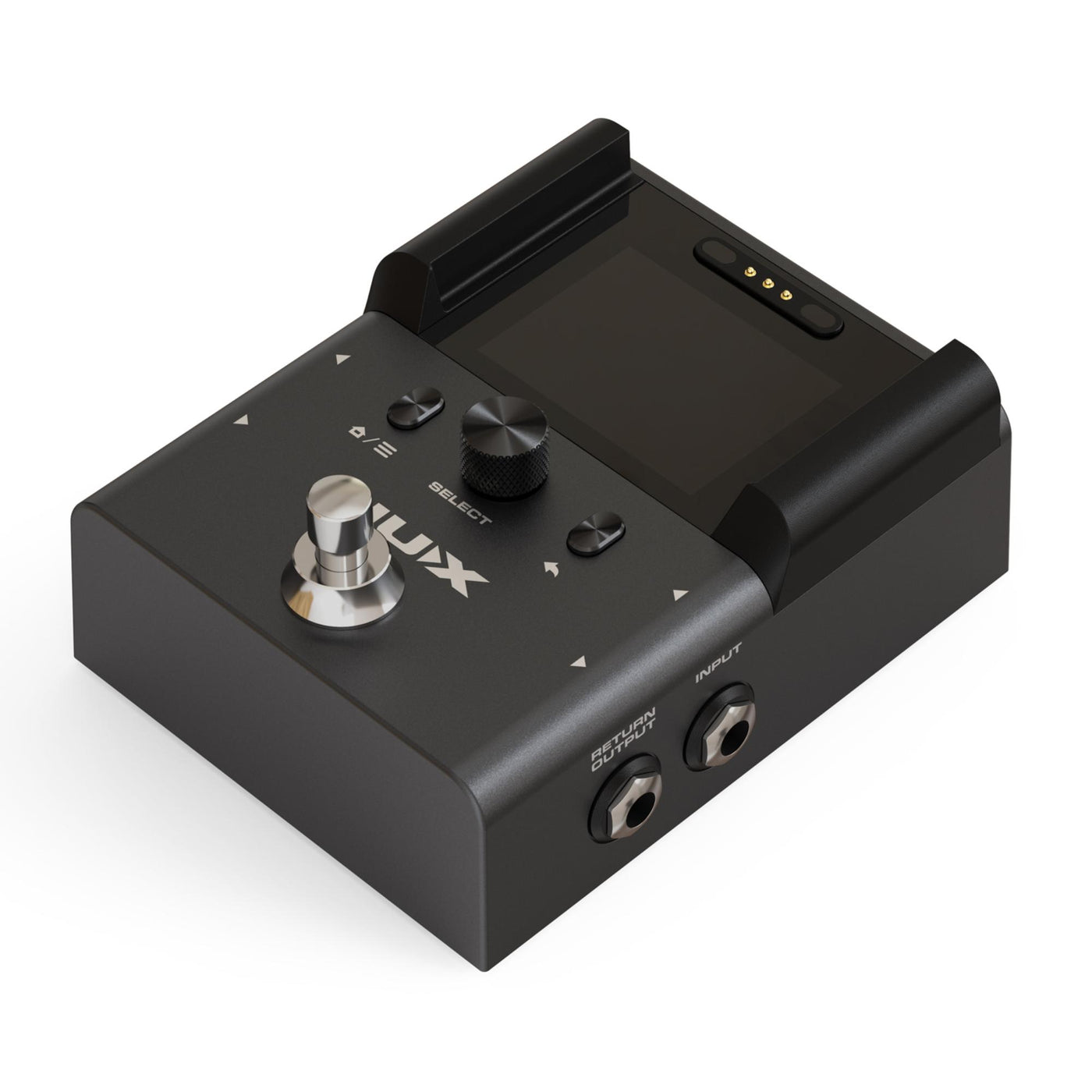

A Multifunction Pedal Receiver

The B-8 combines multiple practical features into one unit, including wireless transmission, tuner, junction box, boost, buffer, DI functions, guitar input and a magnetic charging port for the transmitter.

Magnetic Charging Port

The pedal receiver has a magnetic charging port. Just place the transmitter on it to start charging—no plugs needed. The magnetic connection is secure and lets you quickly recharge during breaks.

Features:

• B-8 Guitar wireless system for guitars, bass, and 1/4″ output instruments.
• Suitable for band rehearsals, live performances.
• 12dB Clean Boost
• On-Board Tuner
• 2.4-Inch Color Display

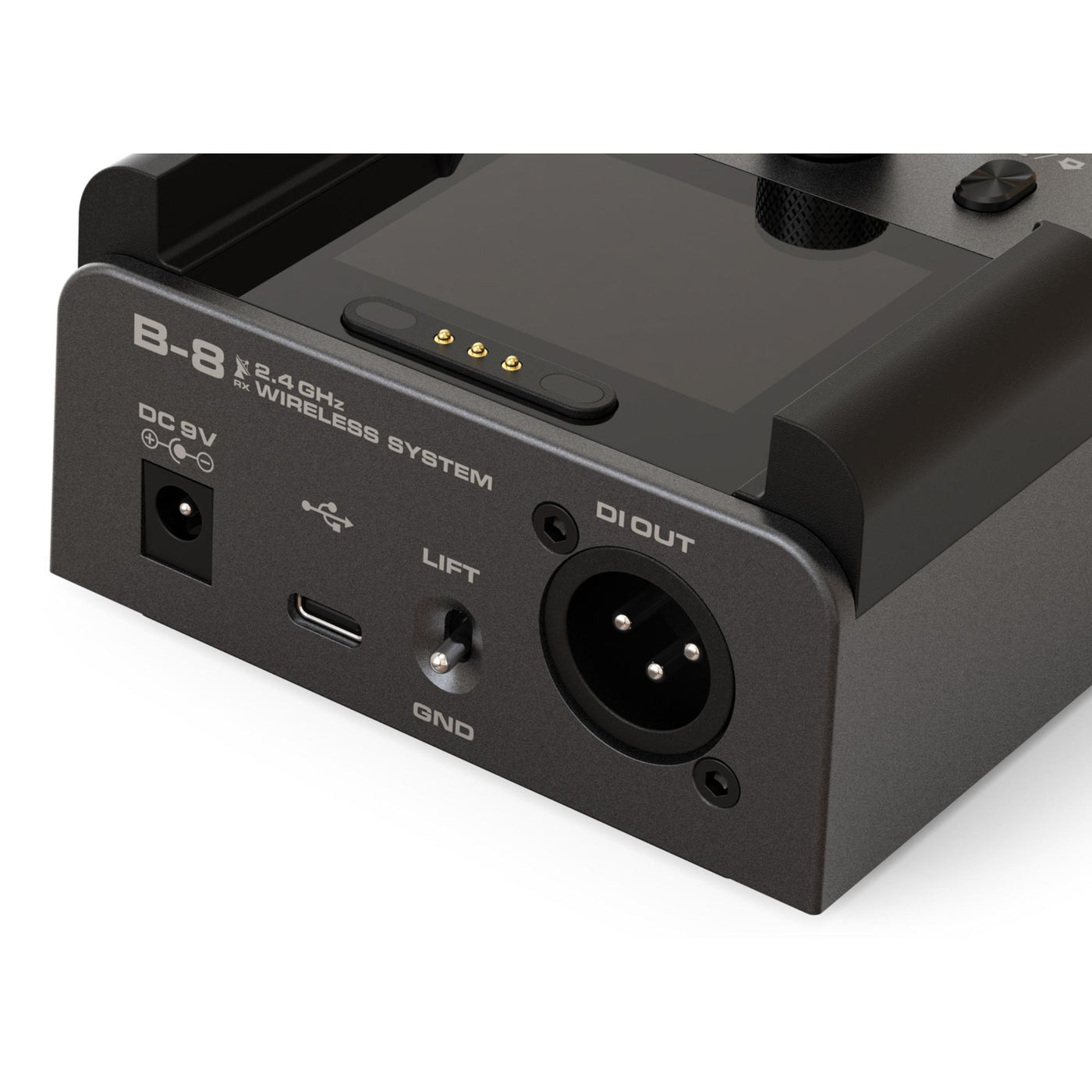

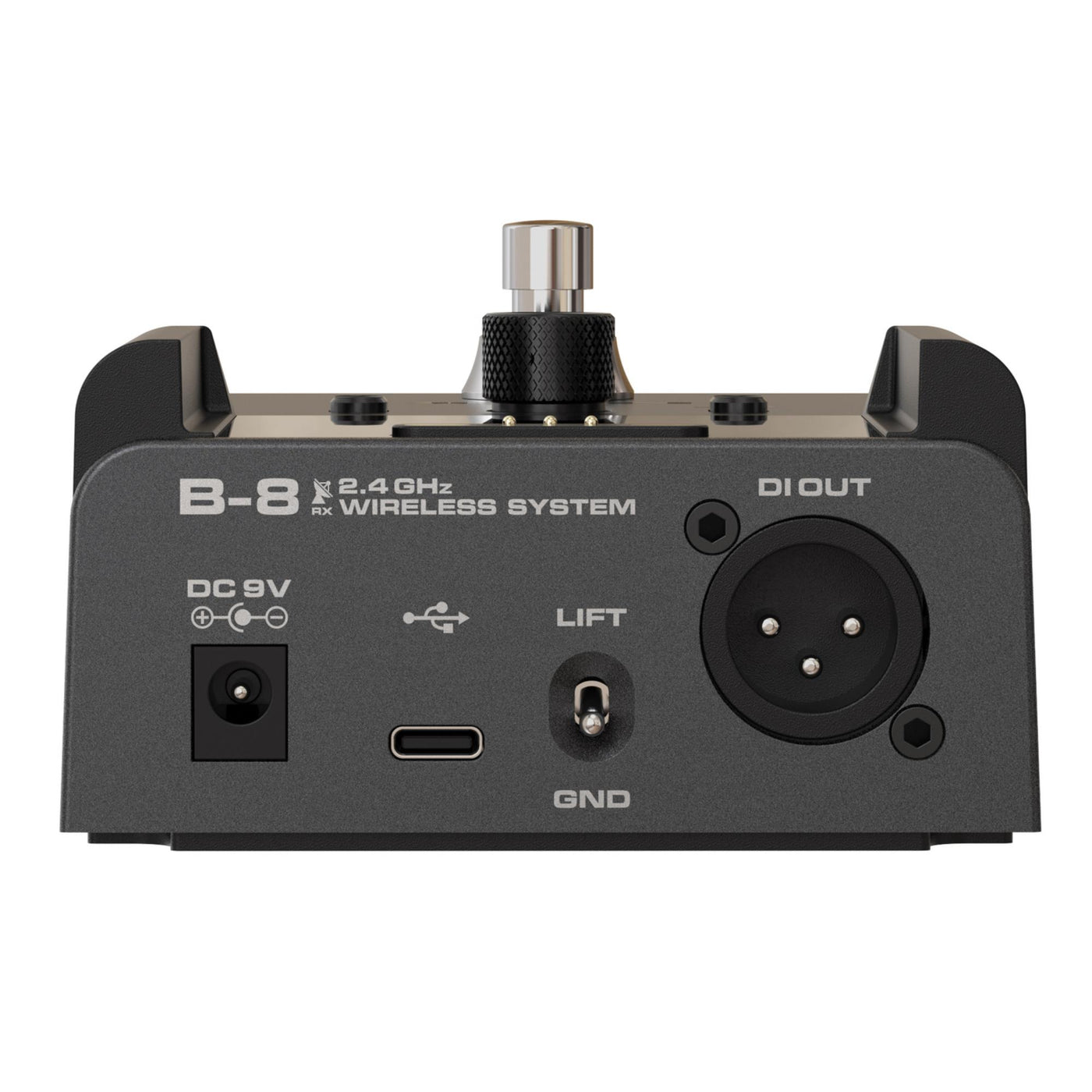

• Features a professional grade DI output with XLR balanced connection
• Built-in Send/Return loop, Input/Output interfaces, and buffer
• 2.4 GHz wireless with true diversity antennas.
• Pro-series for stable coexistence in environments with heavy wireless traffic.
• Intelligent frequency hopping avoids interference automatically.
• 79 channel with 1 MHz bandwidth for enhanced wireless compatibility.
• 6-level stability (2.5 ms to 8.7 ms); increasing stability levels can improve wireless stability.
• Compact transmitter clips onto guitar strap to prevent plug loosening and rotation.
• Cable Tone simulates the feel of traditional guitar cables.
• High-sensitivity tuner for quick and accurate tuning.
• Built-in buffer improves signal clarity when using multiple pedals.
• Junction box send / Return loop for connecting pedals or multi-effects.
• The receiver provides magnetic charging for fast and secure transmitter recharging.
• Built-in DI function for easy connection to mixers and recording equipment.
• Customizable startup screen and tuner UI for personal style.
• 2.4″ high-res color screen, supports horizontal and vertical display
• Receiver powered by 9 V/500 mA or 12 V/500 mA (center-negative) power supply
• Transmitter 6.5 hours battery life.
• 0 to +12 dB clean boost.
• 24-bit/48 kHz audio quality.
• Up to 165 ft wireless range (line-of-sight).
• 20 Hz–20 kHz frequency response.
• 122 dB dynamic range.
• Operating Frequency Band: 2400-2483.5 MHz
• Transmission Power: <10 mW EIRP
• Audio Quality: 24 bit/48 kHz
• Frequency Response: 20 Hz-20 kHz
• Latency: 2.5 ms (best performance setting)-8.7 ms (safety mode)
• Input Impedance: 1M ohm
• Maximum Input Level: 1 kHz at 1% THD +6.2 dBV (5.78 Vp-p)
• THD+N: 0.01% 1 kHz, typical
• Dynamic Range: 122 dB, A-weighted (OUTPUT/SEND)
• Output level Adjustment Range: mute -64 dB~0 dB
• Auto-sleep Mode: N/A
• Built-in Battery Capacity: 3.7 V/500 mAh Rechargeable Li-polymer (Transmitter)
• TX Battery Life: up to 6.5 hours
• Power Requirements: 7 V to 12 V DC, 500mA min, negative tip power supplies (Receiver)
• Operation Range: Up to 50m (165 feet) maximum
• TX dimesions: 2.9" (L) x 2" (W) x 1" (H) mm
• TX weight: 63 g
• RX dimensions: 4.8" (L) x 3.7" (W) x 2.4" (H) mm
• RX weight: 500 g / 1.1 lbs
